WHEN YOU NEED PERFECT PROTECTION

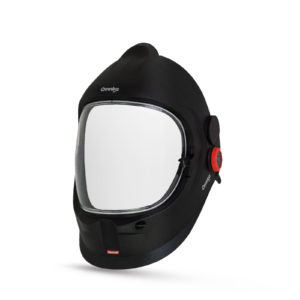

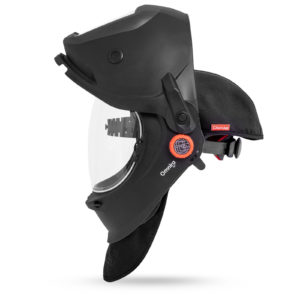

Grinding shield with integrated air distribution for the highest respiratory protection, protection of eyes and face. It also offers high protection against high speed particles. The shield can be extended with a welding shield, which gives you a full-fledged welding flip-up helmet.
It is adapted for use with powered air purifying respirators CleanAIR® or with continuous flow compressed air breathing apparatuses CleanAIR®.
Lightweight and durable
Lightweight and durable shell, meets the requirements of EN 175 B and thus ensuring protection against high speed particles.
Highest respiratory protection
Omnira air is adapted for use with powered air purifying respirators CleanAIR® or with continuous flow compressed air breathing apparatuses CleanAIR®.

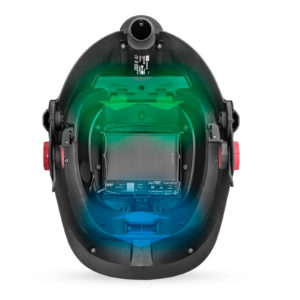

Adjustable air flow
For more individual comfort you can regulate the airflow in two zones
ZONE 1 – control knob accessible from outside the helmet controls the direction of the air
coming from the lower part of the airduct.
ZONE 2 – the two other outputs are located in the upper part of the helmet. The intensity of the
airstream can be regulated by the two sliders inside the helmet

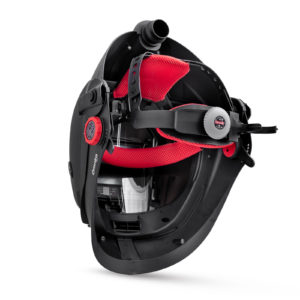

VariGEAR
FITS ALL HEAD SHAPES Newly designed head suspension allows multiple individual settings.
COMFOTABLE HEADGEAR The crown part of the headgear is vertically adjustable to fit all head shapes and sizes.
QUICK REPLACEMENT Easy replacement of the headgear just by sliding it out of the holder.
PRECISE FIT The smooth ratchet mechanism allows precise adjustment of the head circumference and a secure fit.
CUSTOMIZABLE Easy adjustment of the distance between the face of the welder and ADF. Keep the helmet as close as possible to your eyes for a wider view and minimum neck strain.
HOSE HOLDER Easily removable hose holder can be placed either left or right.
Protection plate

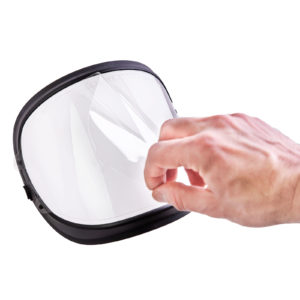

If you want to protect the visor from dirt, a cylindric visor with the option of protective plates can be used. You simply put on and remove the protective plates.
Extend your protection

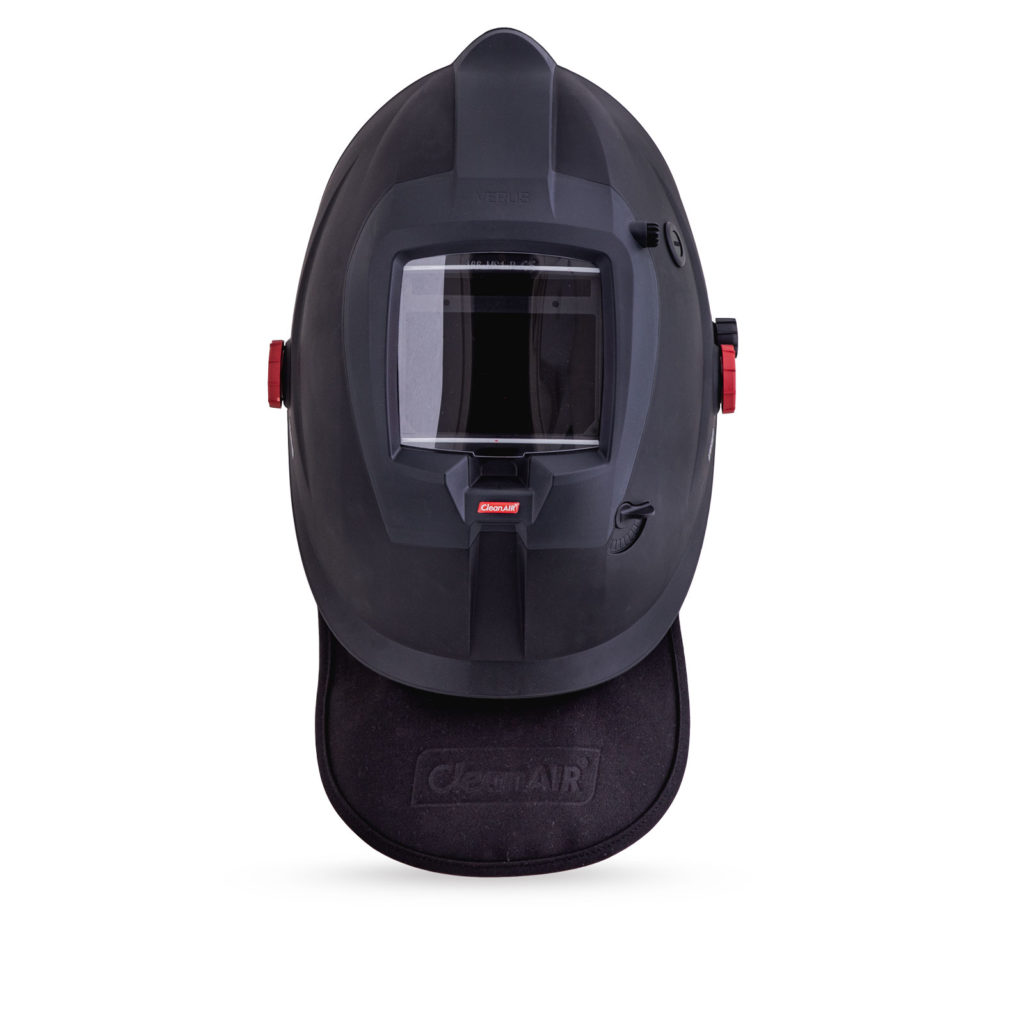

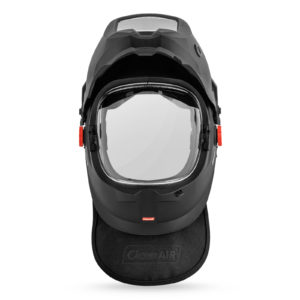

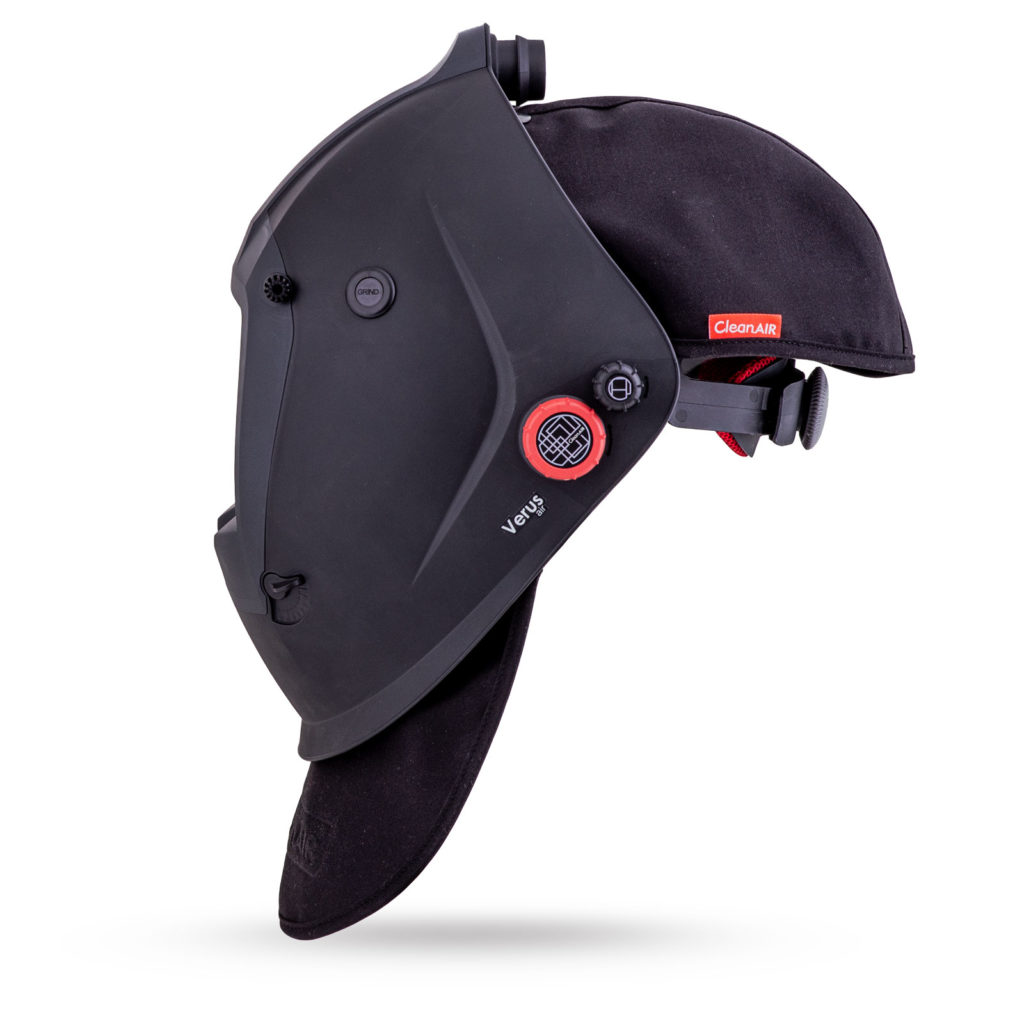

Omnira air comes in a basic package with a protective, flame retardant, head and neck cover that ensures perfect comfort and user protection.
Details
Areas of application
Suitable for grinding and surface finishing operations in heavy industrial environments. In combination with DIN5 visor it is suitable for all gas and plasma cutting/welding operations.
Features & Benefits
- The highest respiratory protection and more comfort thanks to an advanced built-in air distribution system
- Outer control of the direction of the air in the helmet.
- Clear visor of the highest optical quality can be easily changed for avaliable alternative visors (yellow; shade 3,5; cylindrical with protection films).
- Fast and easy replacement of all spare parts
- Newly designed head suspension allows multiple individual settings.
| Complete hoods and sets | |

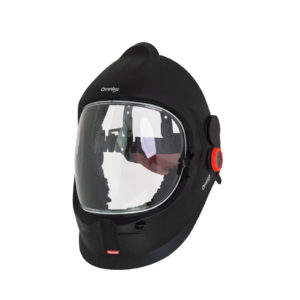

| Protective faceshield Omnira air, incl. headgear and air distribution | 70 31 00 |

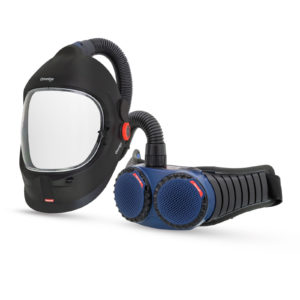

| Ready 2 Work – CleanAIR® AerGO® & Omnira air | 30 31 00 |
| Ready 2 Work – CleanAIR® Basic & Omnira air | 81 31 00 |
| Spare parts, accessories | |
| Spare protective visor TR1, clear | 72 90 00 |
| Spare protective visor TR1, yellow | 72 90 01 |
| Spare protective visor TR1, clear, aPA, chemicaly resistant | 72 90 90 |
| Spare protective visor CR1, clear CP | 72 91 00 |
| Spare protective visor TR1, shade 3 | 72 90 03 |
| Spare protective visor TR1, shade 5 | 72 90 05 |
| Face seal CleanAIR® VERUS air, Omnira air | 70 30 60 |
| Protective head cover, flame retardant (Verus, Omnira) | 70 30 71 |
| Protective neck cover, flame retardant (Verus, Omnira) | 70 30 72 |
| Protective head & neck cover, flame retardant (Verus, Omnira) | 70 30 73 |
| VariGEAR Standard w/o padding, w/o sweatband | 72 00 09 |
| VariGEAR Comfort, headgear incl. sweatband | 72 00 10 |
| VariGEAR sweatband (pck of 2) | 72 00 15 |
| VariGEAR comfort set (set of sweatband and paddings) | 72 00 17 |
| Rear padding VariGEAR | 72 00 14 |
| Upper padding VariGEAR | 72 00 16 |
| Protection film for visor CR1 (Uni-Mask, Omnira), pack of 10 pcs | 72 03 20/10 |
| Technical data | |
| Weight | 717 g |
| Material | Shell – PA Visor – PC Headgear – PP, PA |
| Hose connection | QuickLOCK™ |
| Certification / NPF – respiratory protection |
powered air purifying respirators – EN 12941, TH3 / NPF 500 airline systems (supplied air) – EN 14594 (3B) / NPF 200 |
| Certification – eye and face protection |
Protective visor TR1 – EN166 1 FT B K N Frame – EN166 3 4 5 FT B 5/2-5 |
