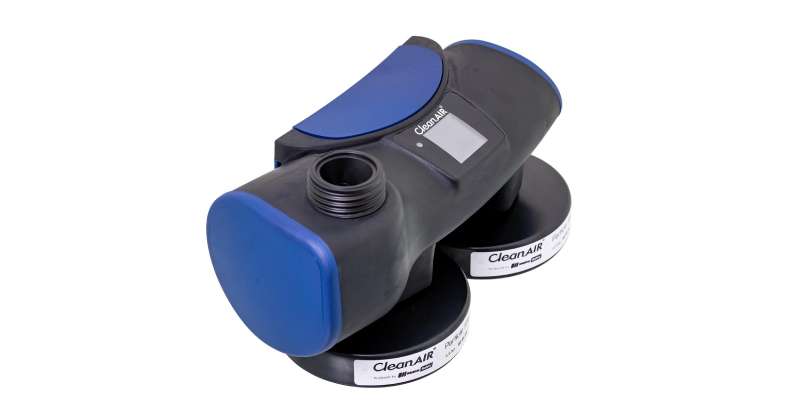

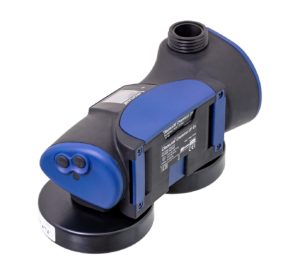

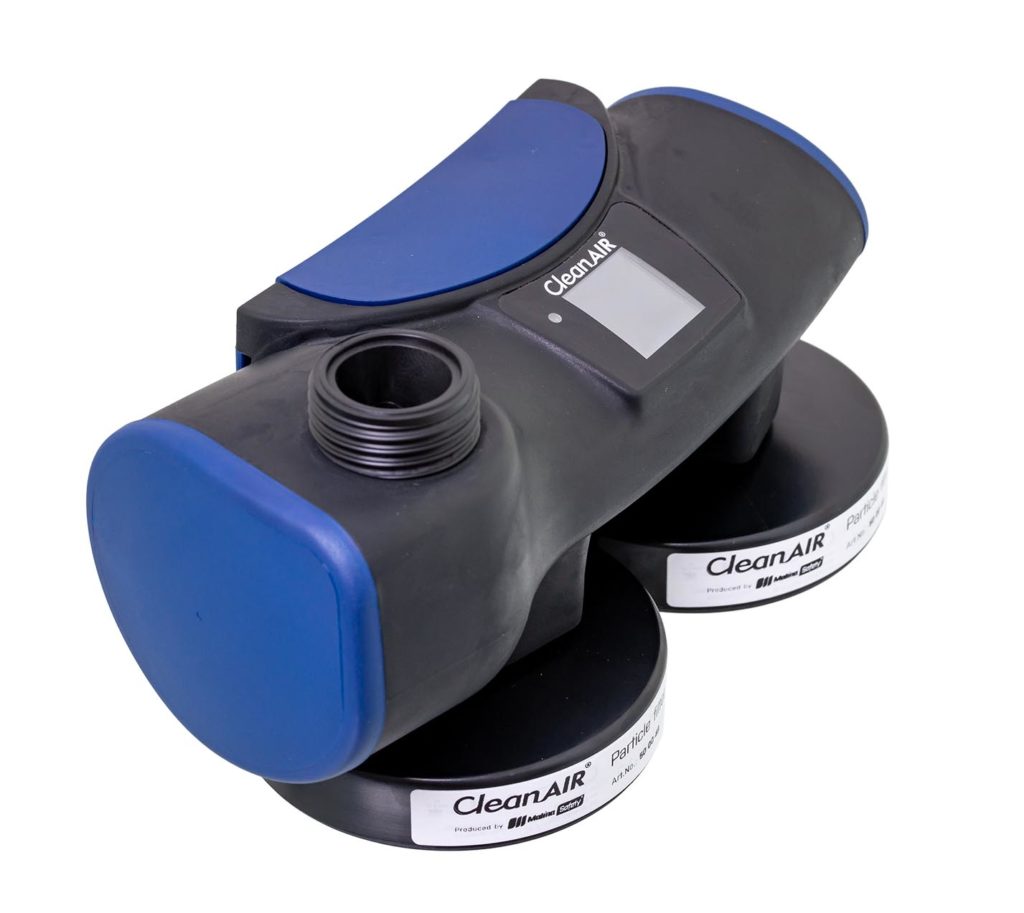

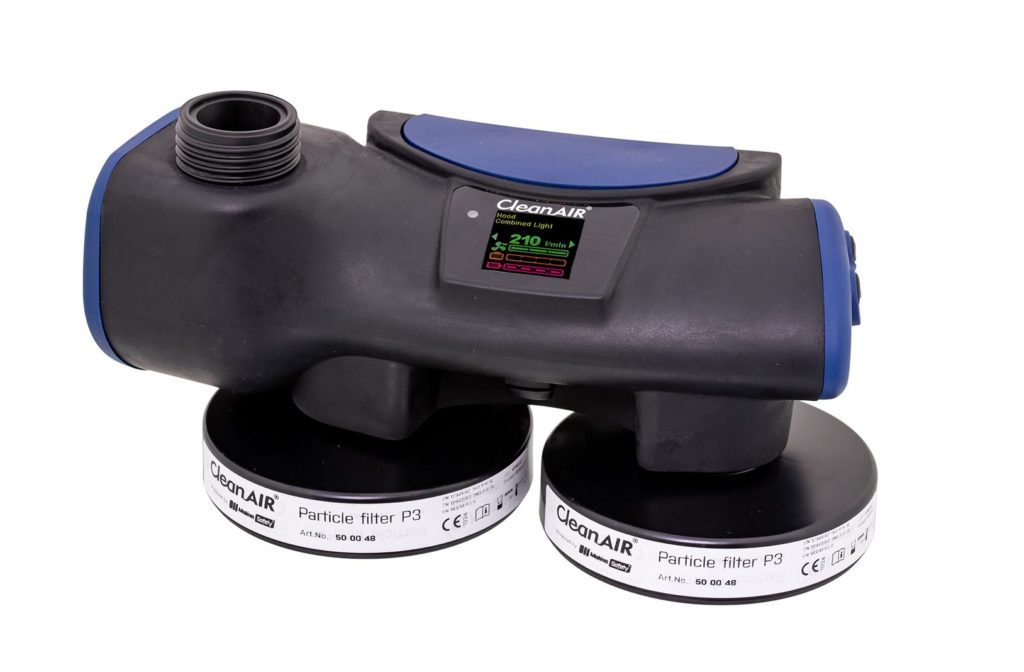

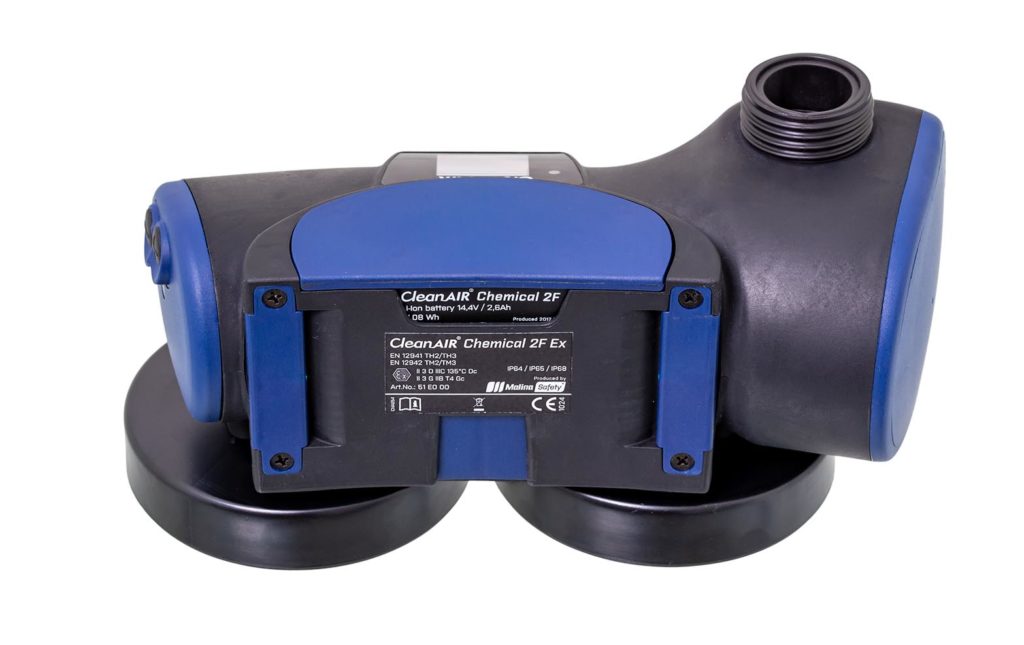

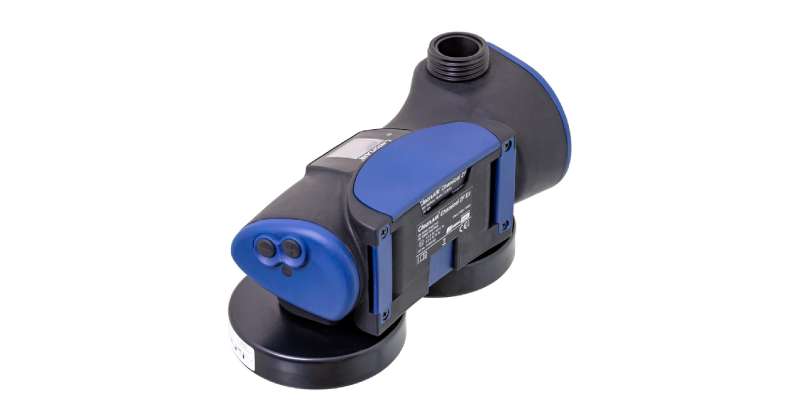

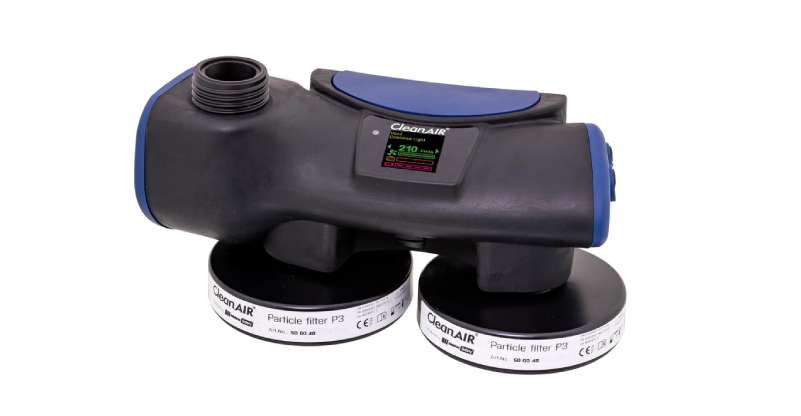

The most versatile and durable respirator is newly available in ATEX version which can be used in potentiallly explosive atmospheres.

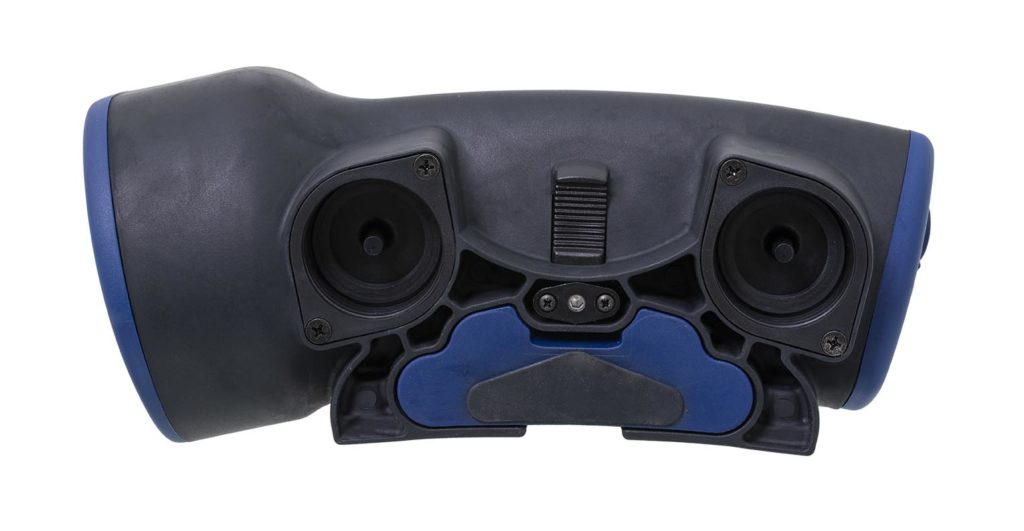

Despite its compact design and low weight, Chemical 2F is characterized by outstanding durability, chemical resistance and increased ingress protection. The thought-out design with smooth surface allows easy decontamination by shower or even full immersion. The unique aotomatic closing system prevents unwanted contamination while the filters are being changed. The smart Flow Control system maintains the airflow constant regardless filter clogging or low battery charge. Audiovisual alarm indicate when the battery charge and/or filter replacement is required. Airflow is individualy adjustable from 120 lpm up to 235 lpm.
Details
Areas of application
- Potentially explosive atmospheres – approved to Zone 2
- Heavy industrial environments including chemical and pharmaceutical industry
- Remediation operations, laboratories
- First responders and emergency teams
- Biological protection
Features & Benefits
- Compact design and low weight
- Specially adapted for use in potentially explosive atmospheres – approved to Zone 2
- Compatible with a hood, mask or ventilated protective suit
- High mechanical and chemical resistance
- Increased ingress protection allows decontamination by shower or even full immersion (IP64/IP65/IP68)
- Full colour display clearly shows all the relevant information – filter clogging, battery charge, airflow
- Flow Control system maintains constant airflow regardless of the level of filter clogging or battery charge
- Short battery recharging time < 3 hours
- Audiovisual alarm
- Multilingual user interface
Complete sets | |

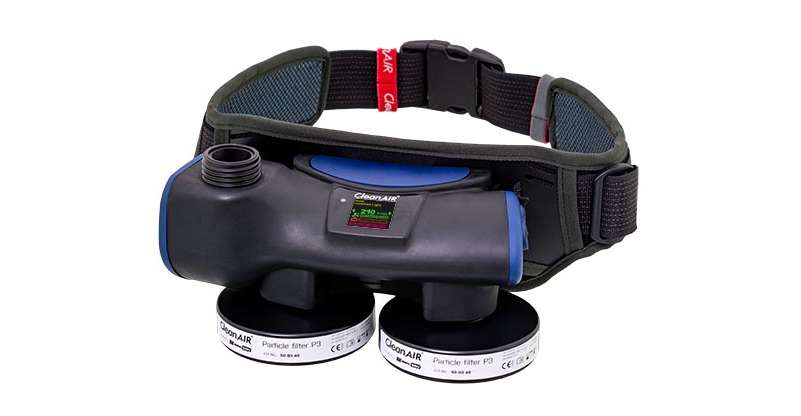

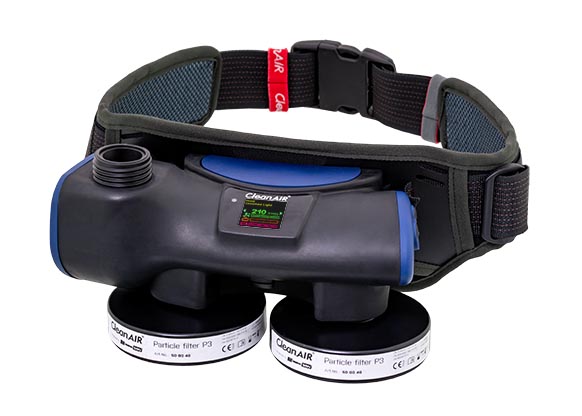

CleanAIR® Chemical 2F Ex – incl. comfort belt Ex, Li-Ion battery, charger, light flexi hose QuickLOCK™, flow indicator |
51 E0 00FC |
CleanAIR® Chemical 2F Ex – incl. flexi hose QuickLOCK™, comfort belt Ex, UK charger | 51 E0 00FCU |
CleanAIR® Chemical 2F Ex – incl. PVC belt, Li-Ion battery, charger, light flexi hose QuickLOCK™, flow indicator | 51 E0 00FD |
Short hood CA-1, orange | 72 01 02 |
Short hood CA-1, blue | 72 01 02B |
Long hood CA-2, orange | 72 02 02 |
Long hood CA-2, blue | 72 02 02B |
Long protective hood CA-10, chemically resistant | 72 10 02 |
Protective face shield UniMask, grey | 72 03 00.01 |
Spare parts, accessories | |
Standard battery, Li-Ion (14,4 V / 2,6 Ah) | 51 00 10 |
Power adaptor 230 V for the main socket | 51 00 15.1 |
Power adaptor 12 – 24 V – car power socket | 51 00 15.2 |
Charger Li-Ion 14,4 V – EURO plug | 51 00 30EUR |
Charger Li-Ion 14,4 V – UK plug | 51 00 30UK |
Battery charger AUS plug | 51 00 30AUS |
Set of decontamination plugs – 2F | 51 00 46 |
Light flexi hose QuickLOCK™ – CA40x1/7” | 71 00 60 |
Rubber hose QuickLOCK™ – CA40x1/7” | 71 00 86 |
CleanAIR® Chemical 2F Ex – compatible filters | |
Compatible with all the CleanAIR® particle and combined filters with RD40×1/7“ thread |
Weight | 960 g (including battery) |
Dimension | 240 mm / 110 mm / 120 mm |
Airflow | adjustable 120 -235 lpm |
Alarm | audio, visual |
Operation* / charging time | < 10 / < 3 h |
Battery | Li-Ion 14,4 V / 2,6 Ah (standard) |
Hose connection | CA40x1/7“ |
Certification | EN 12941 TH3 EN 12942 TM3 |
Ingress protection | IP64 / IP65 / IP68 |
ATEX classification | II 3 G IIB T4 Gc II 3 D IIIC 135°C Dc |
* at 160 lpm with brand new P R SL filters and fully charged battery |
